x86 Crash Course (WIP)

5 min read

x86 Crash Course (WIP)

{width=50%}

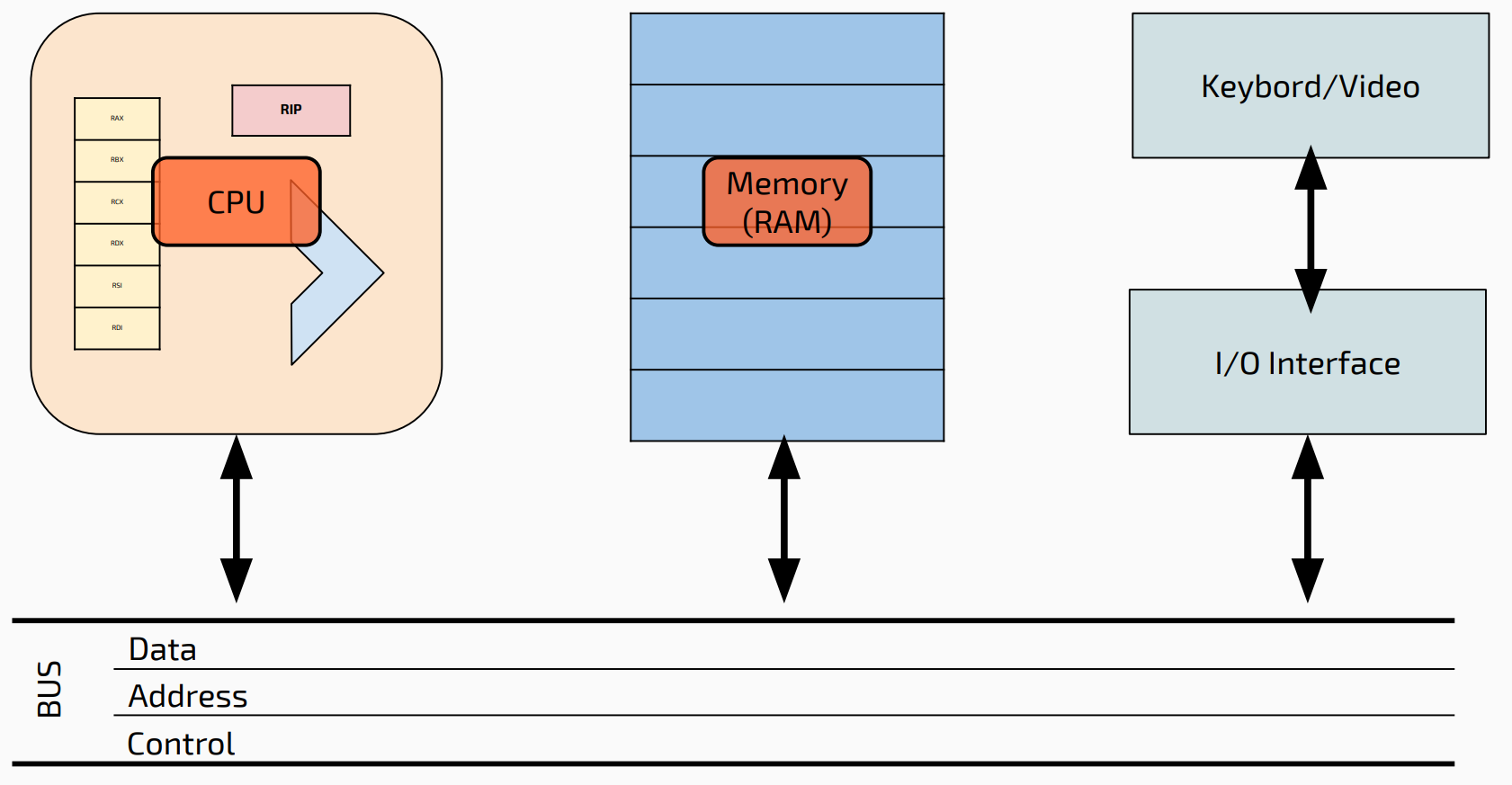

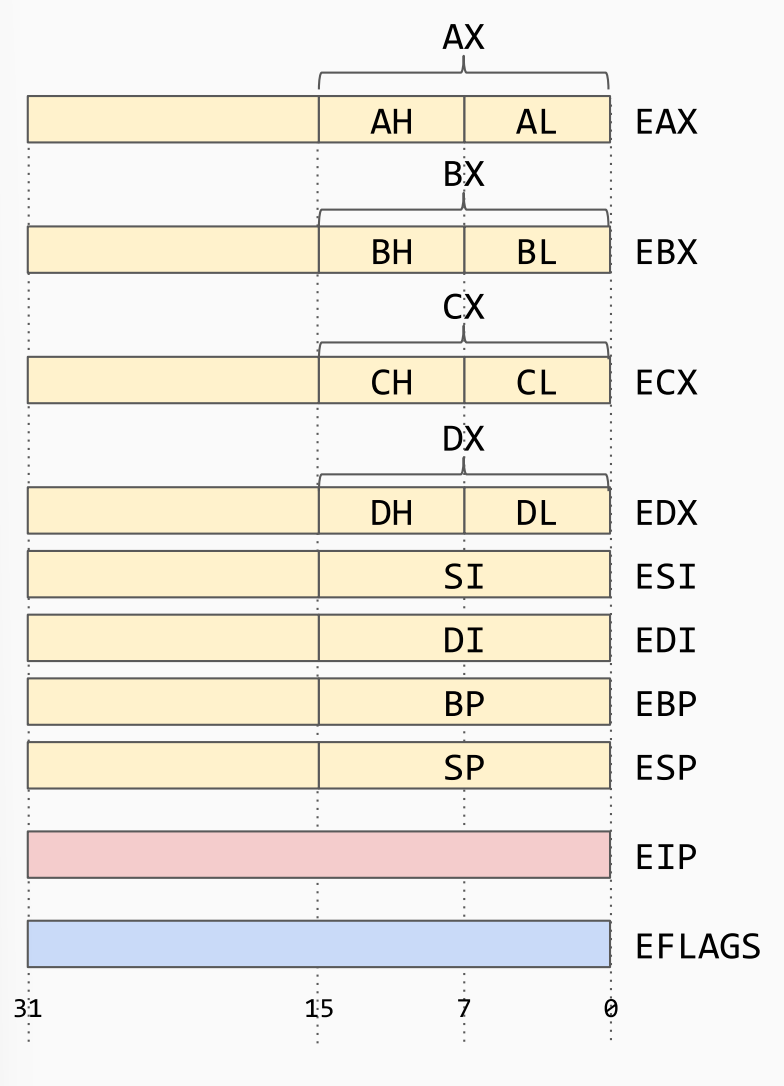

Registers:

{width=50%}

  • General-purpose registers: EAX, EBX, ECX, EDX, ESI, EDI, EBP, ESP
  • ESI and EDI used for string operations
  • EBP used as base pointer
  • ESP used as the top stack pointer
  • EIP
    • Accessed implicitly, not explicitly
    • Modified by jmp, call, ret
    • Value can be read through the stack (saved IP)

EFLAGS register is used basically for control flow decision.

x86 Fundamental data types:

  • Byte: 8 bits
  • Word: 2 bytes
  • Doubleword: 4 bytes (32 bits)
  • Quadword: 8 bytes (64 bits)

Moving the value 0 (immediate) to register EAX:

mov eax, 0h

0h means 0 in exadecimal

mov [ebx+4h],0h

To move a memory value from one point to another, it is necessary to pass through the CPU by using a register.

mov eax, [ebx]
mov eax, [ebx + 4h]
mov eax, [edx + ebx*4 + 8]

Basic instructions

Instruction = opcode + operand

Most important:

  • Data Transfer: mov, push, pop, xchg, lea

  • Integer Arithmetic: add, sub, mul, imul, div, idiv, inc, dec

  • Logical Operators: and, or, not, xor

  • Control Transfer: jmp, jne, call, ret

  • And many more…

  • mov destination , source

    • MOV eax, ebx
    • MOV eax, FFFFFFFFh
    • MOV ax, bx
    • MOV [eax],ecx
    • MOV [eax],[ecx] NOT POSSIBLE
    • MOV al, FFh

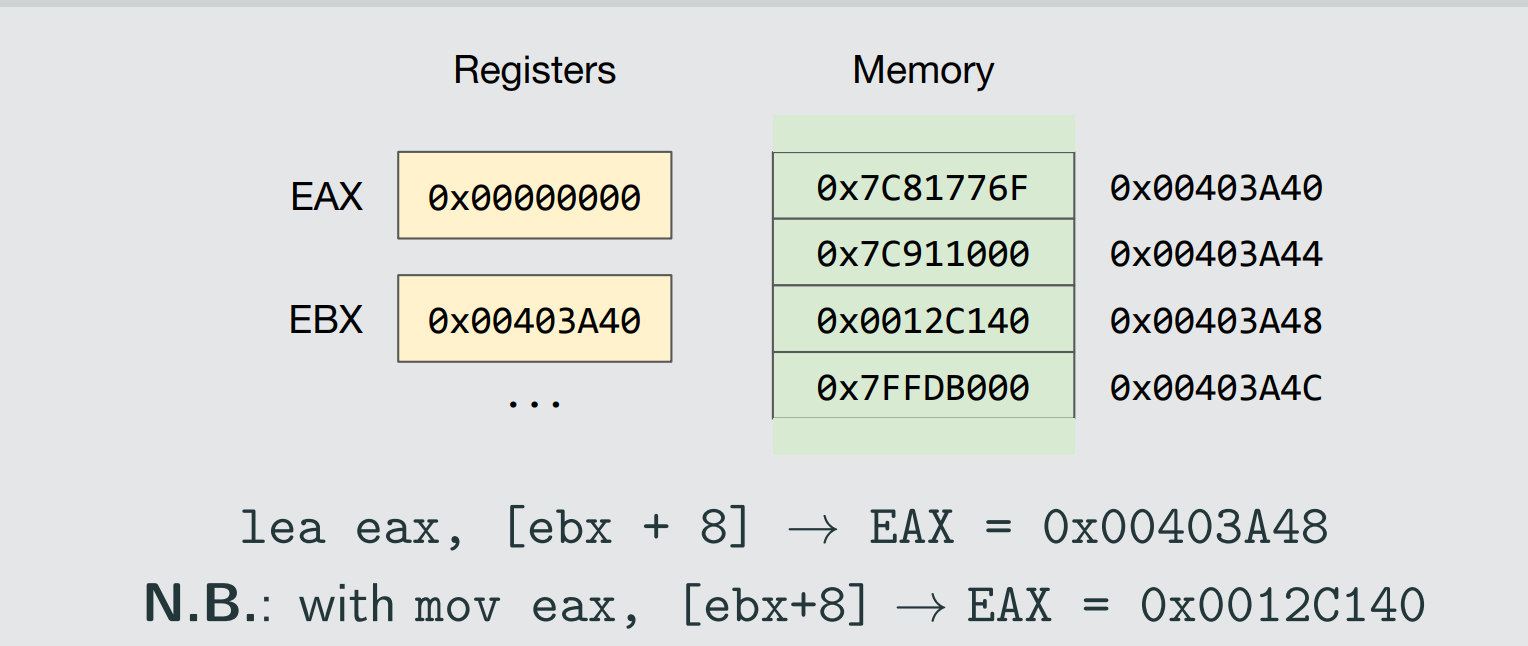

  • lea destination , source to store the pointer to the memory, not the value

  • add destination , source makes: dest <- dest + source

  • sub destination , source makes: dest <- dest - source

  • mul source : one of the operands is implied (it can be AL,AX or EAX) and the destination can be AX,DX:AX, EDX:EAX (the results could eventually occupy two registers)

  • div divisor : dividend is implied (it’s in EDX:EAX according to the size)

  • cmp op1, op2 computes op1 - op2 and sets the flags

  • test op1, op2 computes op1 & op2 and sets the flags

  • j<cc> address to conditional jumps, reference: http://www.unixwiz. net/techtips/x86-jumps.html

  • jmp address is unconditional jump

  • nop no operation, just move to next instruction.

  • int value is software interrupt number.

  • push immediate (or register): stores the immediate or register value at the top of the stack and obviously decrements the ESP of the operand size.

  • pop destination: loads to the destination a word off the top of the stack and it increases ESP of the operand’s size.

  • call: push to the stack the address of the next instruction (not the function called) and move the address of the first instruction of the callee into EIP

  • ret : it’s the opposite of call function … restores the return address saved by call from the top of the stack. It’s equivalent to pop eip .

  • leave restores the caller’s base pointer and it’s equivalent to say: mov esp, ebp and pop ebp … basically you are “deleting” the func’s frame.

Endianness

Endianness refers to the order in which bytes of a data word are stored in memory.

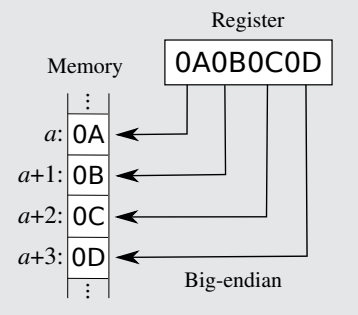

Big endian (left)

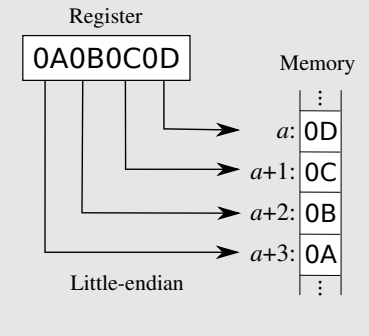

Little endian (right)

Program Layout and Functions STACK

PE (Portable Executable): used by Microsoft binary executables • ELF: common binary format for Unix, Linux, FreeBSD and others • In both cases, we are interested in how each executable is mapped into memory, rather than how it is organized on disk.

  • PE is used by Microsoft binary executables while ELF is common in Unix, Linux, FreeBSD, and others.
  • The focus is on how the executable is mapped into memory rather than how it is organized on disk.

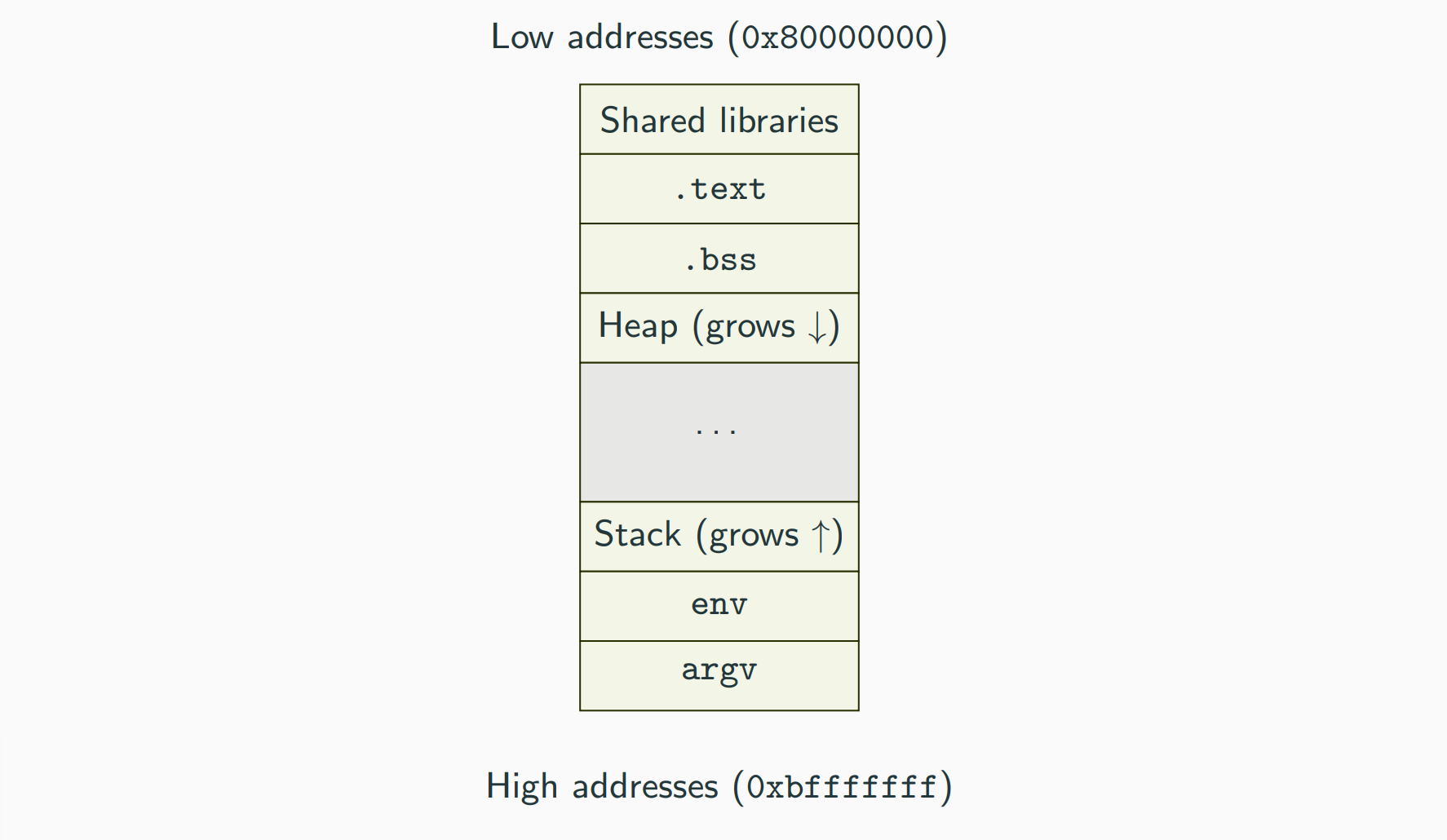

How an executable is mapped to memory in Linux (ELF) ?

ExecutableDescription
.pltThis section holds stubs which are responsible of external functions linking.
.textThis section holds the “text,” or executable instructions, of a program.
.rodataThis section holds read-only data that contribute to the program’s memory image
.dataThis section holds initialized data that contribute to the program’s memory image
.bssThis section holds uninitialized data that contributes to the program’s memory image. By definition, the system initializes the data with zeros when the program begins to run.
.debugThis section holds information symbolic debugging.
.initThis section holds executable instructions that contribute to the process initialization code That is, when a program starts to run, the system arranges to execute the code in this section before calling the main program entry point (called main for “C” programs).
gotThis section holds the global offset table.

Stack and heap like always used. The stack pointer is the register ESP. The stack grows towards lower addresses.

EIP is an x86 register that stores the “Extended Instruction Pointer” for the stack. This register directs the computer to the next instruction to execute. Remember that we can’t read or set EIP directly.

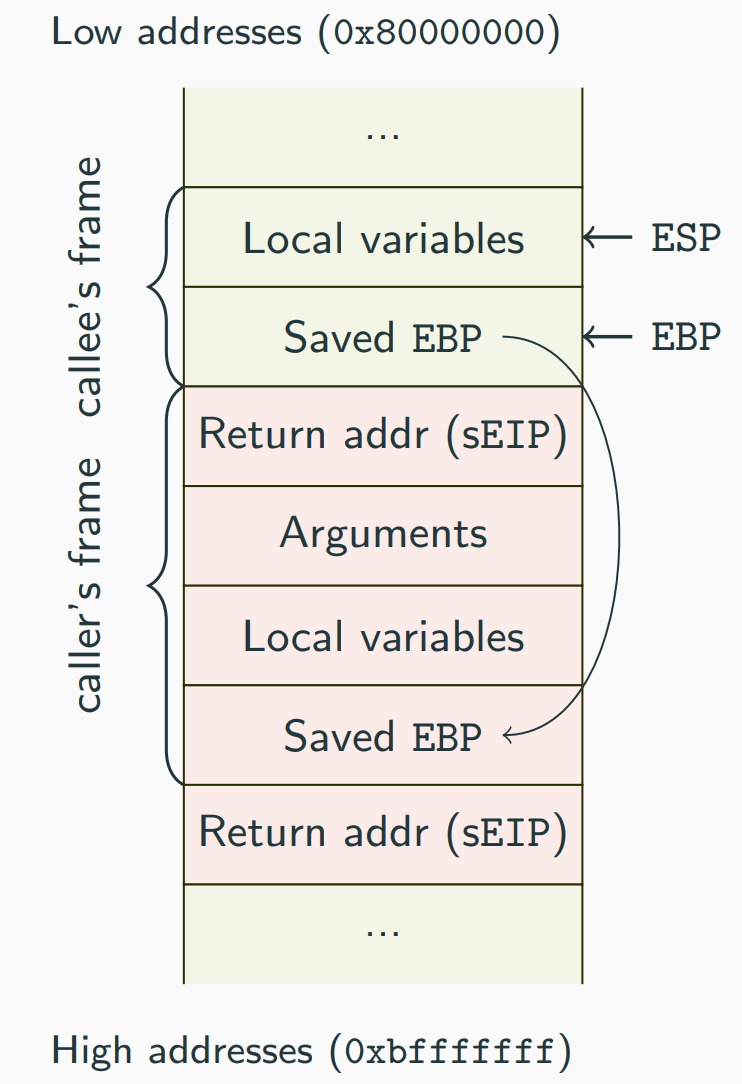

The concept of stack frame refers to the stack area allocated to a function: basically the ideas is that each function called has its own area on the stack dedicated to the local variables used by the function. To refers this variables we used EBP which is called “base pointer” since it points to the start of the function’s frame.

{width=50%}

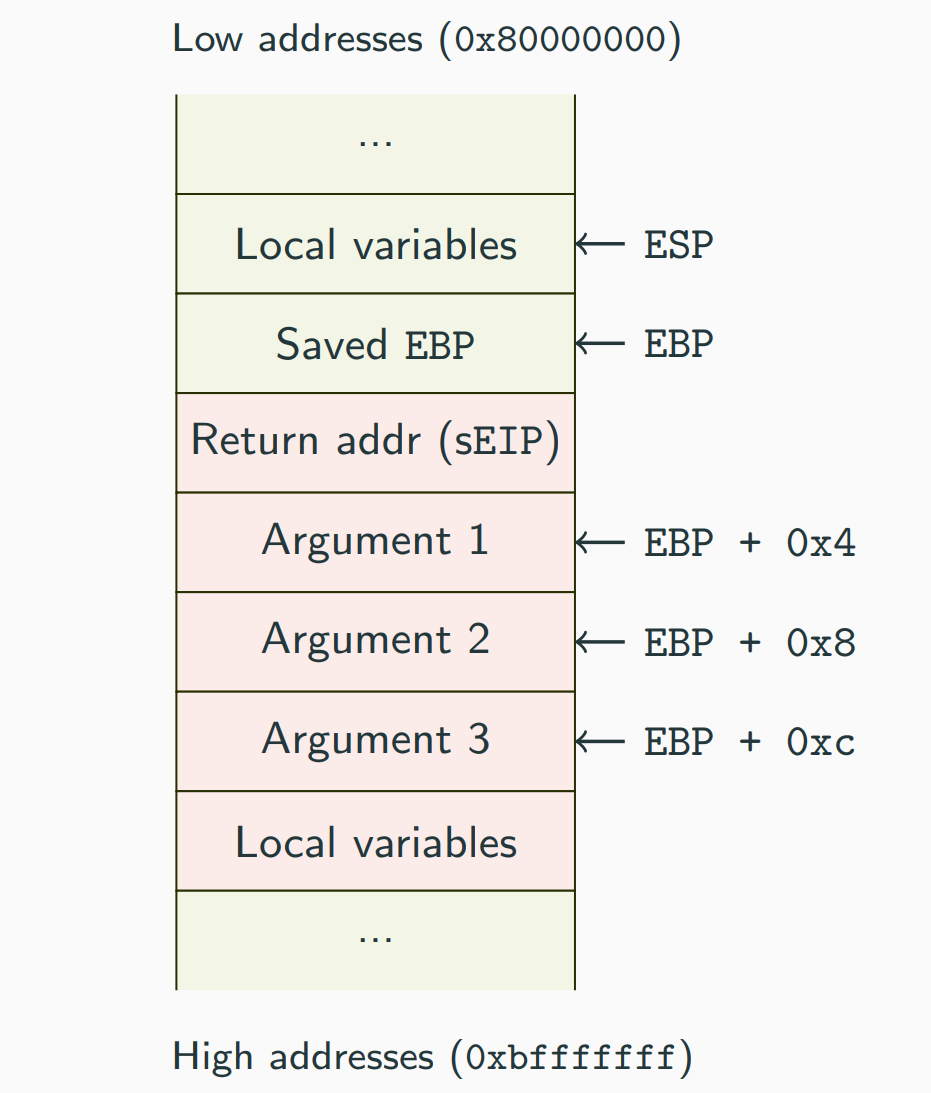

So the EBP is used to access local variables easily and the local variables stored in stack frame, at lower address than EBP (negative offsets). Depending on the calling convention EBP may be used to access function arguments which are at a higher address than EBP (positive offsets).

{width=50%}

Calling conventions

  • Calling conventions determine the mechanism for passing parameters, either through the stack, registers, or both.
  • They also define who is responsible for cleaning up the parameters.
  • Additionally, they specify how values are returned from functions.
  • Lastly, calling conventions determine which registers are saved by the caller and which ones are saved by the callee.
  • Up to two parameters can be passed through two registers (ECX and EDX ) the others are pushed to the stack.
  • Return is the register EAX

To debug we use gdb <name> . We use pwndbg which is a GDB plug-in that makes debugging with GDB suck less, with a focus on features needed by low-level software developers, hardware hackers, reverse-engineers and exploit developers.

GitHub - pwndbg/pwndbg: Exploit Development and Reverse Engineering with GDB Made Easy

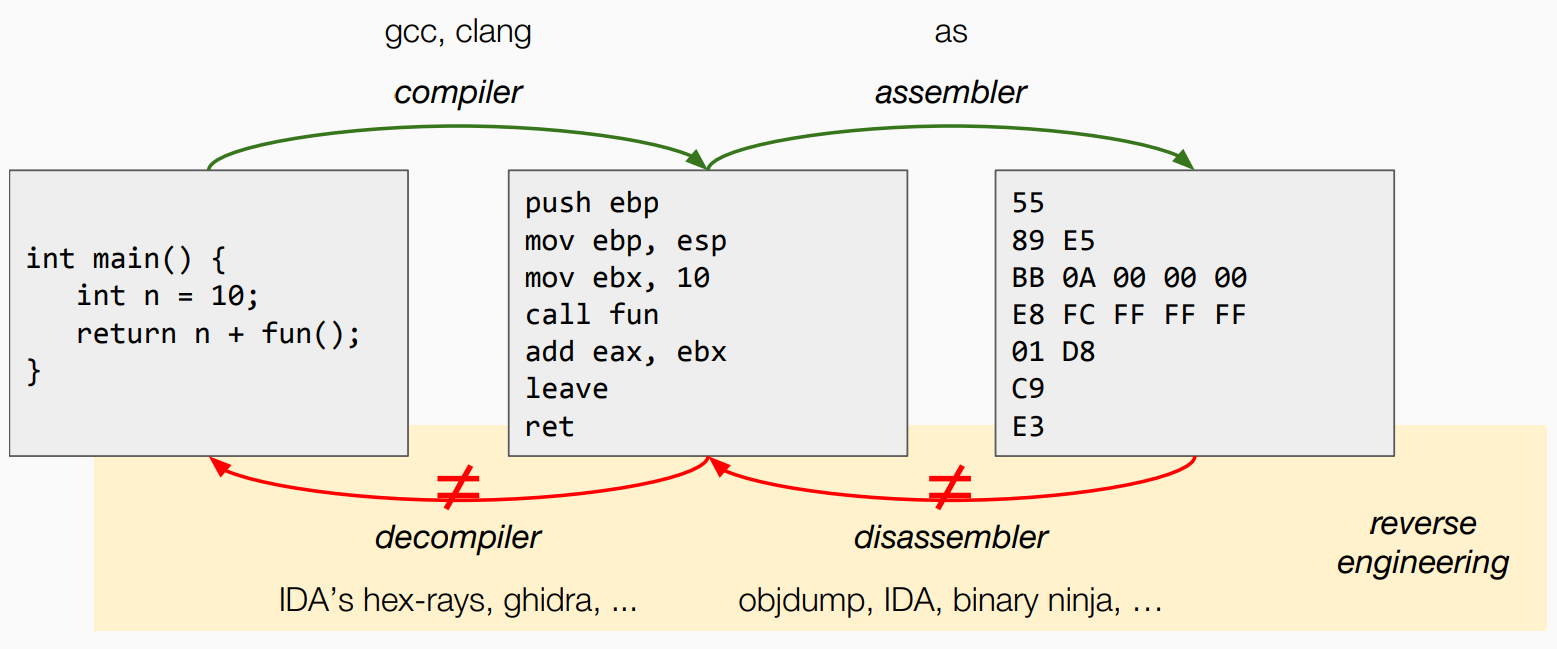

We also see IDA and Ghidra.
