02.JPA

JPA

ORM stands for Object-Relational Mapping, and it’s basically a way to interact with a relational database using an object-oriented programming model. Instead of writing SQL queries to get data from a database, you can just use objects in your code.

One of the most popular ORM frameworks for Java is JPA (Java Persistence API). JPA is basically the standard for ORM in the Java Enterprise Edition (Java EE) platform, and it makes working with a relational database really simple. You can do all the basic stuff like creating, reading, updating, and deleting data without having to write complex SQL queries. Plus, it has some awesome features like caching and lazy loading that can help you make your code run faster.

JPA Introduction - javatpoint

JPA auto-generates SQL code from Java code, creating correspondence between Java objects and DB tuples. This is called ORM (Object-relational mapping):

• classes are tables
• objects instances are tables rows (tuples)
• the physical memory address of an objects is the primary key of the tuple
• references to other objects are the foreign keys
• methods are triggers

By default entities are mapped to tables with the same name and their fields to columns with the same names, but you can always change it using some annotations:

@Entity @Table(name="SUPERHEROS")
public class Superhero {
@Column(name="REAL_NAME",nullable=false)
private String real_name;
...
}

Relationships

All relationships in JPA are unidirectional, the only way to make bidirectional relationships is using two ‘paired’ unidirectional mappings. The types of relationships are:

• Many-to-one
• One-to-many
• One-to-one
• Many-to-many

Fetch Policy

By default, single-valued relationships are fetched eagerly and collection-valued relationships are loaded lazily. However, you can specify the fetch mode using the fetch attribute in annotations such as @ManyToOne and @OneToMany.

• @ManyToOne(fetch = FetchType.EAGER) is used when there aren’t many elements and you can load them runtime when needed.
• @OneToMany(fetch = FetchType.LAZY) viceversa of EAGER.

Cascade Types

Cascade types define the behavior of entities when other entities are persisted, removed, merged, etc. The available cascade types are:

• PERSIST
• REFRESH
• REMOVE
• MERGE
• DETACH

JPA relationships

In JPA, relationships are implemented by a foreign key column that refers to the key of the referenced table. This column is called a join column. The annotation @JoinColumn indicates the foreign key column that implements the relationship in the database, and is normally inserted in the entity owner of the relationship, which is the one mapped to the table that contains the foreign key column.

When specifying bidirectional relationships, the mappedBy attribute indicates that “this side” of the relationship is the inverse of the relationship, and the owner resides in the “other” related entity. In the absence of the mappedBy parameter, JPA creates a bridge table, which is used for many-to-many relationships. The purpose of the mappedBy parameter is to instruct JPA not to create a bridge table, as the relationship is already being mapped by a foreign key in the opposite entity of the relationship.

One to many

@Entity
public class B{
@Id private int id
@OneToMany(mappedBy = "java_var")
private Collection<A> As;
...
}

//On the other side:

@Entity  //this is the owner of the relationship
public class A{
@Id @GeneratedValue(strategy=GenerationType.AUTO)
private int id;

@ManyToOne
@JoinColumn (name="fk") //the column where there is the foreign key
private B java_var;
...
}

One to One

@OneToOne(mappedBy="B");
private Class A;

// owner side:
@OneToOne(mappedBy="A");
private Class B;

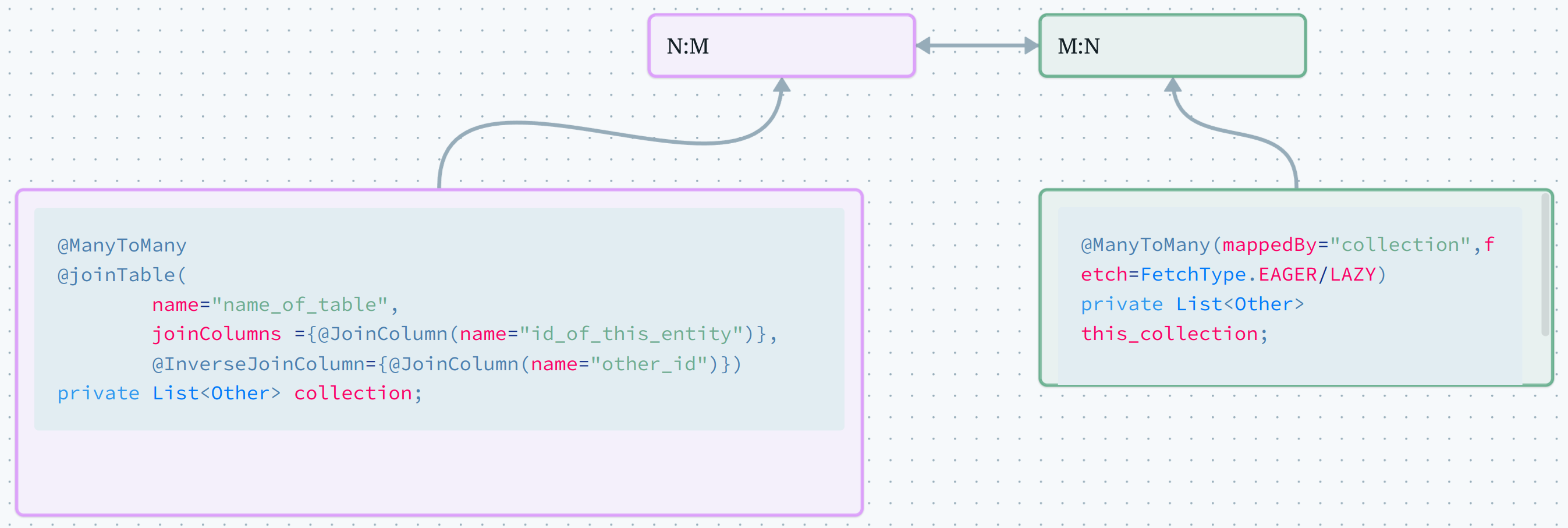

Many to many

The logical model of a N:M relationships requires a join table (aka bridge table). The N:M relationship with attributes between a parent product and its sub-products is mapped differently in the two directions.

@Entity
public class B{
@Id private int id
@ManyToMany(mappedBy = "java_list_of_Bs")
private List<A> As; //actually not only lists .. but any kind of collections
...
}

//On the other side:

@Entity
public class A{
@Id @GeneratedValue(strategy=GenerationType.AUTO)
private int id;

@ManyToMany
@joinTable(
	name="table_name",
	JoinColumns = @JoinColumn(name="this_entity_fk"),
	@InverseJoinColumn = @JoinColumn(name="other_fk"))
private Collection<B> java_list_of_Bs;
...
}

Note that the owner in these cases is not relevant.

ManyToMany with attributes

• In a “regular” N:M relationship, the access paths are:
  • Fetch all instances of A given B
  • Fetch all instances of B given A
• In N:M with attributes, there are additional access paths:
  • The values of the attributes of the pair <A, B>

In every collections implemented as tuples (e.g., <Product, quantity>)) there are some differences with the “standard” @ManyToMany relationship:

• Entities key element collection are specified with the @ElementCollection annotation.
• We also use a @CollectionTable annotation
• We map the join from father to child using the @JoinColumn to specify the column holding the father id (like in @ManyToMany )
• Instead of specifying the @inverseJoinColumns, we use a @MapKeyJoinColumn annotation to specify the column holding the PK of the entity used as a map index

@ElementCollection(fetch=FetchType.TYPE)
@CollectionTable(name="id_name",
				 joinColumns =
				 @JoinColumn(name="this_id")
)
@MapKeyJoinColumn(name="other_id")
@Column(name="third_attr_in_relation")
private Map<Other,Attribute> map;

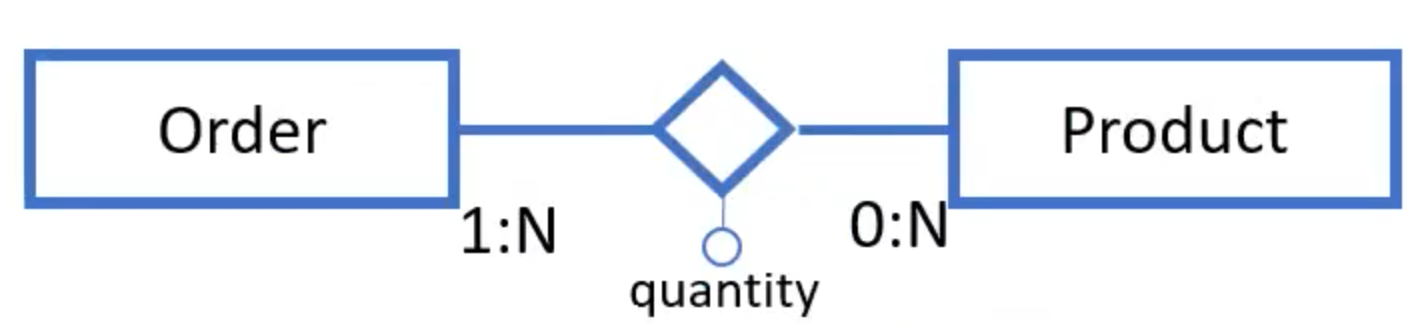

Example

We can’t have a traditional join table with 2 columns because we have 3 attributes: so we use a map Map<Product, Integer> .

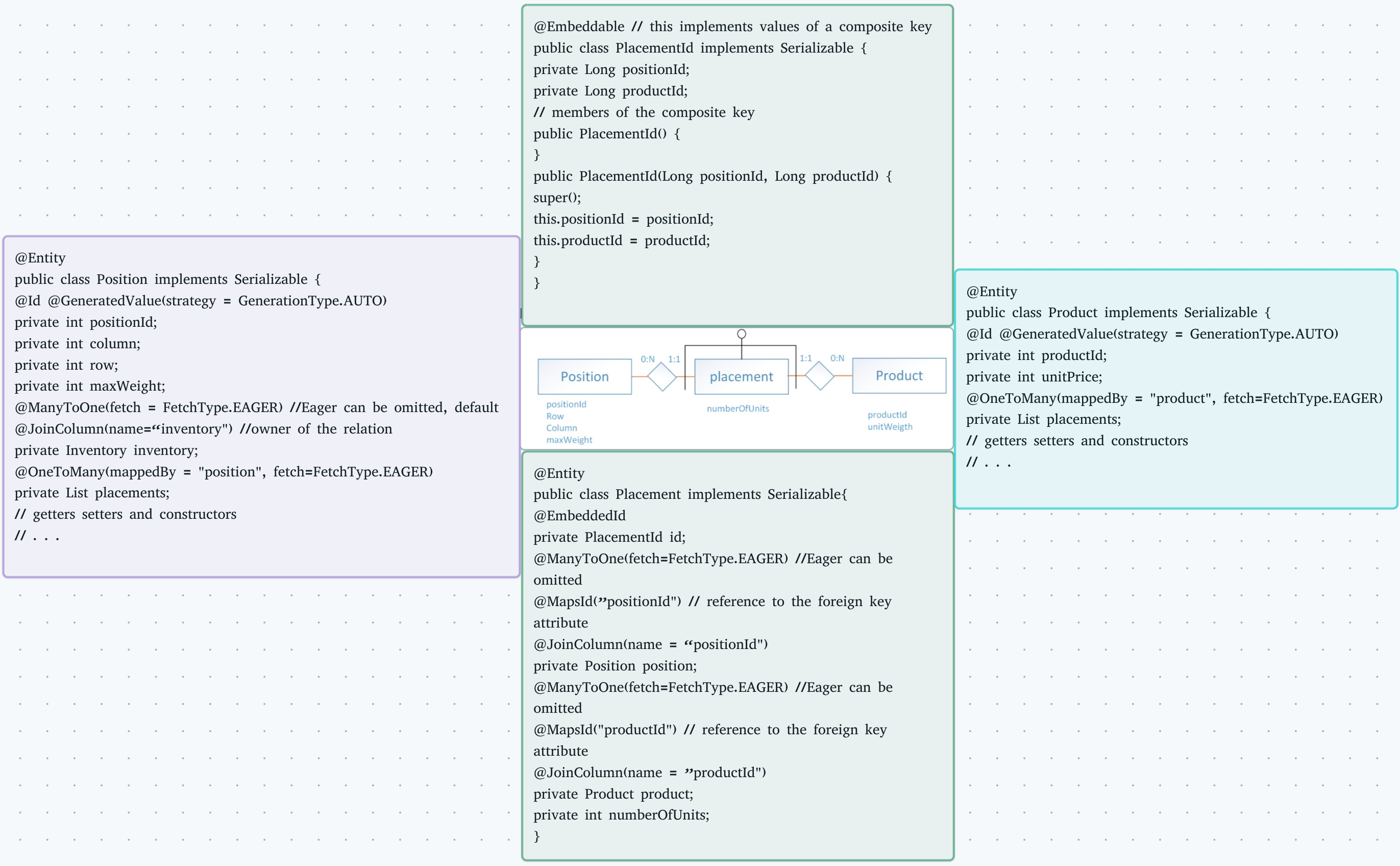

Composite Keys

A relation with a composite key is implemented by creating an @Embeddable class that represents the composite keys. This class should have the attributes of the ids that make up the composite key, and a constructor that takes these attributes as parameters and initializes them.

Then, this class is linked to the interested entity using the @EmbeddedId annotation.

So the recap is: you have to use the keyword @Embeddable (over the class) and a @EmbeddedId over the primary key of this new bridge entity, which will also contain the ID of the other two entities using @MapsId("id1") before @JoinColumn(name = "id1") and @MapsId("id2") ... .

Extra: OrderBy

You can specify an ordering every time you find in the exercise something like “The application permits the operator to select … ordered by submission date descending” using @OrderBy :

@OrderBy("submissionDate DESC")`
